Wai Nickel Alloys is a reliable and reputable manufacturer and supplier that offer high-quality Aluminium 2024 Sheets and Plates in Naypyidaw, Myanmar, from their local facilities. The company has the reputation to be characterized by precision engineering, the use of cutting-edge technologies in manufacturing, and commitment to quality. The aluminium products manufactured by Wai Nickel Alloys are capable of meeting the international standard in terms of strength, durability, and performance. By dedicating itself to quality and innovation, the company is able to be a reliable solutions provider to various industries such as aerospace, automotive, marine, and engineering, where the customers’ needs are solutions that are designed to tolerate challenging environments and give them superior mechanical and structural performance.
Aluminium 2024 Sheets and Plates are made mainly of aluminium alloyed with copper, manganese, and magnesium, which contribute to their strength and ductility. This alloy has a tensile strength of approximately 470 MPa and a yield strength of about 325 MPa. In addition, it offers excellent resistance to fatigue and good machinability, but at the same time, it has lower corrosion resistance than other alloys. Aluminium 2024 is a heat-treatable and robust alloy that is basically used in places where high strength-to-weight ratio is a must, hence, it is most compatible with structural and load-bearing applications that are subjected to the rigors of the heavy use or harsh environments.
Standards : ASTM B209 / ASME SB209
Temper : O, T3,T4, T6, T651
Thickness : 0.2-250
Width : 100-2600
Length : 500-10000
Surface : Bright, polished, hair line, brush, sand blast, embossed, etching, etc.
Finish :Mill, Customer specific finish
Aluminum Sheet/ Plate Coating : PVC Coated, Color Coated, Polyester, Fluorocarbon, polyurethane and epoxy coating

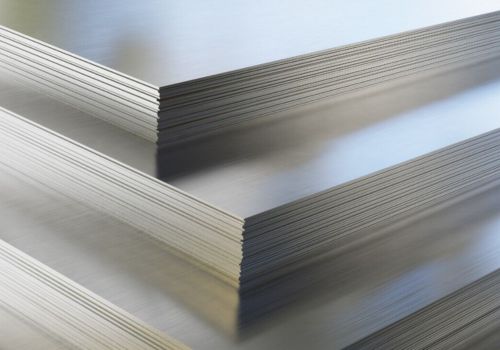

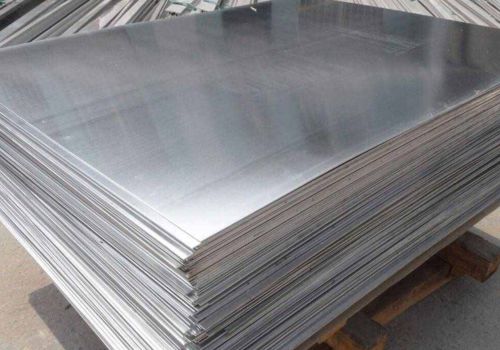

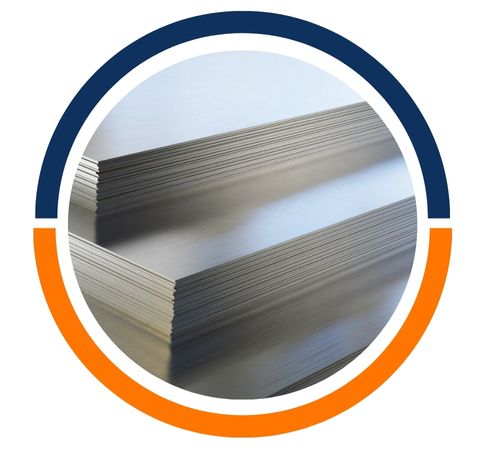

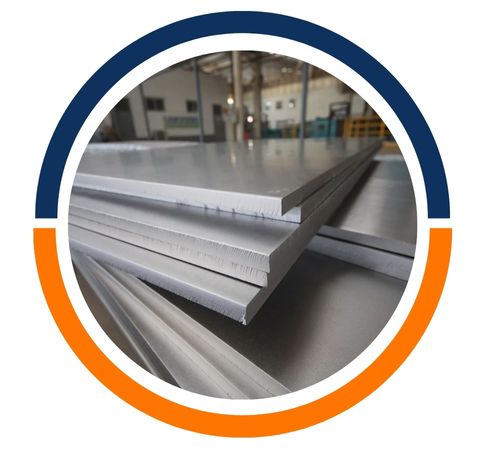

Type : Hot-Rolled (HR) / Cold-Rolled (CR) Sheet
| Grade | Al | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Other |
| min. | Bal | 3.80 | 0.30 | 1.20 | ||||||
| max. | Bal | 0.50 | 0.50 | 4.90 | 0.90 | 1.80 | 0.10 | 0.25 | 0.15 | 0.05 |
| Temper | Tensile Strength | Yield Strength | Elongation |
| KSI | KSI | % | |
| (annealed) | 32 | 14 | 12 |
| T3 | 63 | 42 | 15 |
Maung Aluminium based in Naypyidaw, Myanmar is a renowned manufacturer and supplier of premium aluminium products, including Aluminium Bars, Sheets and Plates, Coils, Chequered Plates, Wires, Pipes, Fittings, Flanges, Forging, Circle, Angles. With a commitment to delivering exceptional quality and service, we cater to diverse industries, offering reliable solutions tailored to specific requirements. Our products are known for their superior strength, corrosion resistance, and precise dimensions. We focus on customer satisfaction by providing an extensive range of aluminium bars designed for structural, industrial, and decorative applications.
| European Standard | OLD | WNr | UNS | ISO | USA (AA) | GERMANY (DIN) |
| AW-AlCu4Mg1 | AU4G1 | 3.1355 | A92024 | AlCu4Mg1 | 2024 | AlCuMg2 |
| Sizes (mm) | Theoretical Mass KG/Plate |
|---|---|
| 2000 X 1000 X 0.5 | 2500 X 1250 X 0.5 |
| 2000 X 1000 X 0.7 | 2500 X 1250 X 0.7 |
| 2000 X 1000 X 0.9 | 2500 X 1250 X 0.9 |
| 2000 X 1000 X 1.2 | 2500 X 1250 X 1.2 |
| 3000 X 1500 X 1.2 | 2000 X 1000 X 1.6 |
| 2500 X 1250 X 1.6 | 3000 X 1500 X 1.6 |
| 2000 X 1000 X 2.0 | 2500 X 1250 X 2.0 |
| 3000 X 1500 X 2.0 | 2500 X 1250 X 2.5 |
| 2.79 | 4.36 |
| 3.91 | 6.10 |
| 5.02 | 7.85 |
| 6.74 | 10.46 |
| 15.01 | 8.93 |
| 13.95 | 20.09 |
| 11.16 | 17.44 |
| 25.11 | 21.80 |
Yes, we offer custom sizes for Aluminium 2024 Sheets and Plates to meet specific project needs. Our team at Maung Aluminium is committed to providing customized solutions for all your requirements. For more details, contact us at sales@maungaluminium.com
Aluminium 2024 Sheets and Plates find their applications in industries that need materials with high strength and resistance to fatigue. The aerospace sector is the main area where the materials are used for aircraft structures, fuselage panels, and wings, among others. The automotive industry uses them for engine components, wheels, and structural parts. By the same token, the marine and defense sectors are among the few areas where the materials have been adopted for use. Besides, the manufacture of tools, machinery parts, and transport systems is the other area where the materials are found. Owing to their excellent mechanical characteristics, lightness, and superb performance under stress, Aluminium 2024 Sheets and Plates have become the most preferred material for the execution of the critical engineering projects.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
